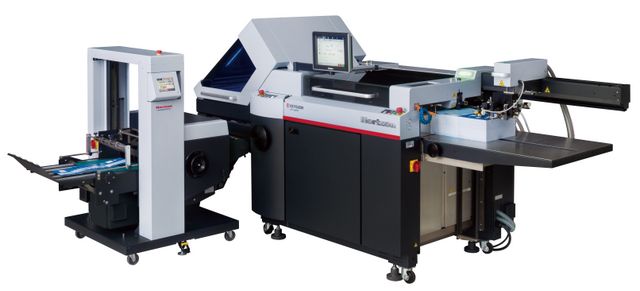

The AFC-566F is an automated super-B2 system equipped with 6 buckles and cross knife, with two buckles under the cross knife allowing a wide variety of 17 fold patterns. Operation is via a user-friendly, icon-based 10.4” colour touch screen. High performance and space efficient, the Horizon AFC-56 series features advanced automation with high quality folding.

  • User-friendly LCD Touch Screen to allow fast, efficient production
  • Innovative wireless remote for greater flexibility, performance and ease-of-use
  • Up to 200 job settings can be memorized for quick and easy recall of regular job
  • 17 fold patterns
  • Fast, consistent feeding on a wide range of paper stocks
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom


Belt Speed 30 to 240 m (98 to 787 ft) / min
Max Sheet Size Max. 558 x 850 mm / 21.965” x 33.460”
Min Sheet Size Min. 128 x 148 mm / 5.040” x 5.830”
Sheet Weight Range Normal Paper 35 to 244 gsm Art/Coated Paper 50 to 232 gsm
