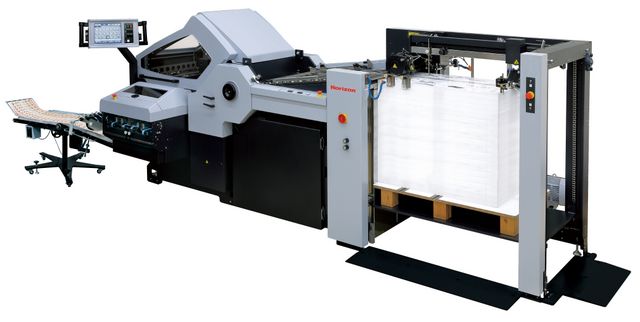

The AFC-74 series B1-format folder is the newest in Horizon’s expanding line-up of quality-engineered folders that combines simple operation, quick changeover, high production speed, and superior fold quality.

  • The folder is easy and intuitive to set-up, even without a skilled operator, thanks to the intelligent automation and user-friendly design.
  • A wide variety of fold patterns are automatically set by inputting the sheet size and selecting a fold pattern through the large colour touchscreen.
  • 3 different types of feed units can be selected for various work environments: Flat Pile Feeder, Pallet Pile Feeder and Round Pile Feeder.
  • Fold rollers are constructed with a combination of steel and soft polyurethane for superior grip and sharp, consistent folding.
  • The folder can be enhanced with JDF workflow from upstream to the post-press using pXnet bindery control system.
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom


Model AFC-746A jdf
Max Sheet Size 740W x 1,100L mm
Min Sheet Size 210W x 297L mm
Max Pile Height 750mm
Production Speed 36,000 sheets/hr (A4 parallel fold)
