Smyth Concept

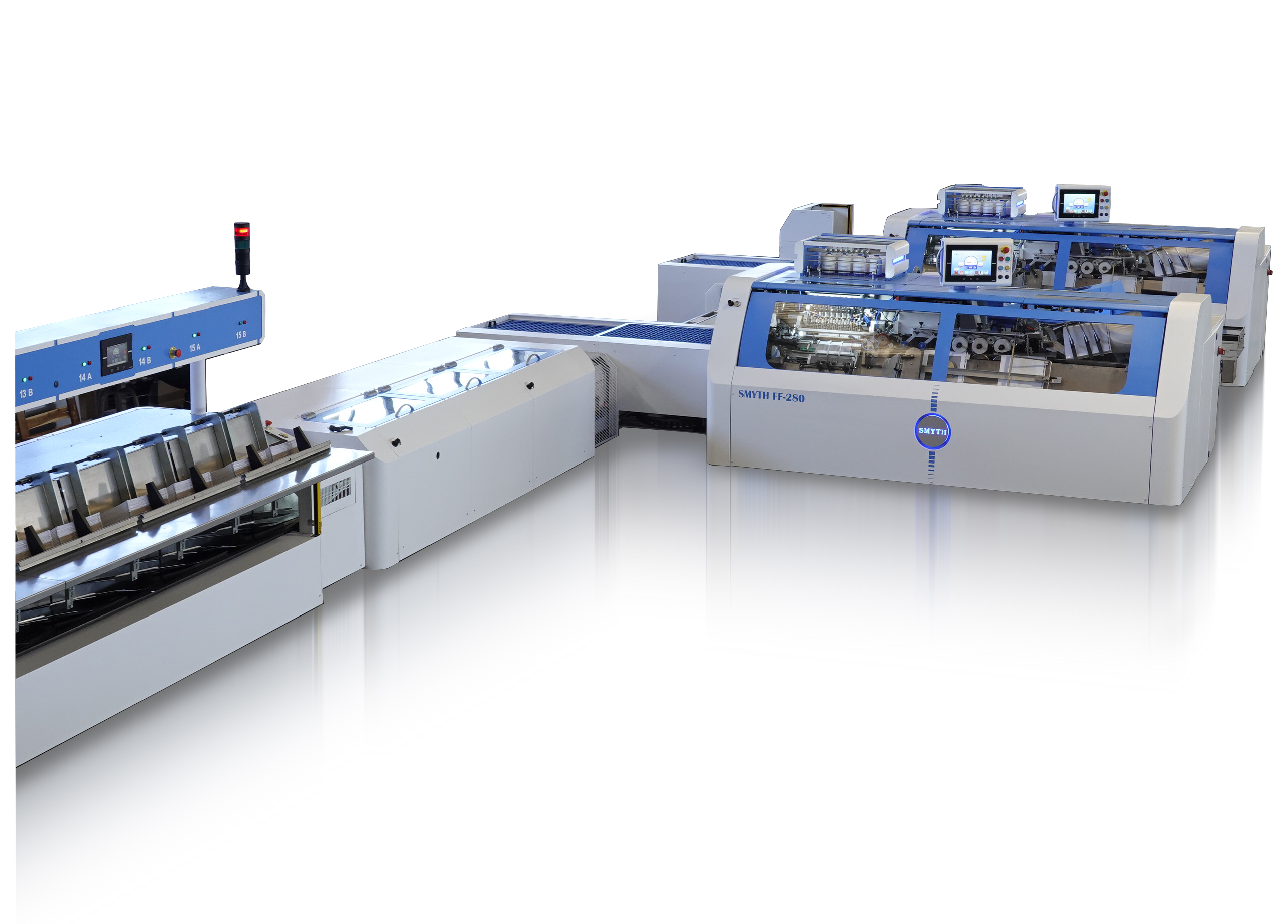

Horizontal automatic gathering and sewing line.

Ergonomics -Extremely fast and handy horizontal loading of signatures into the gatherer.
Compact – Significant space saving thanks to patented technology.
Cost saving – Reduced number of operators handling the entire production line.
Fast setup time -Automatic book programme execution significantly reduces start-up times.
Automation – Automatic adjustment of the system transporting the gathered books to the sewing line.
Supervision – The entire production flow is both easy to access and easily monitored.

FF-280 4D sewing machines
Mechanical speed: 10,800 cycles/hour
Signature size: Max. 420 x 320 mm
Min. 135 x 80 mm

FF-250 4D sewing machines
Mechanical speed: 9,000 cycles/h
Signature size: Max. 560 x 340 mm
Min. 135 x 80 mm

Gatherer – SINGLE GATHERING STATION
Mechanical speed: 3,000 cycles/h
Signature size: Max. 540 x 350 mm
Min. 140 x 80 mm

Gatherer – DOUBLE GATHERING STATION
Mechanical speed: 3,000 cycles/h
Signature size: Max. 350 x 350 mm
Min. 140 x 80 mm
