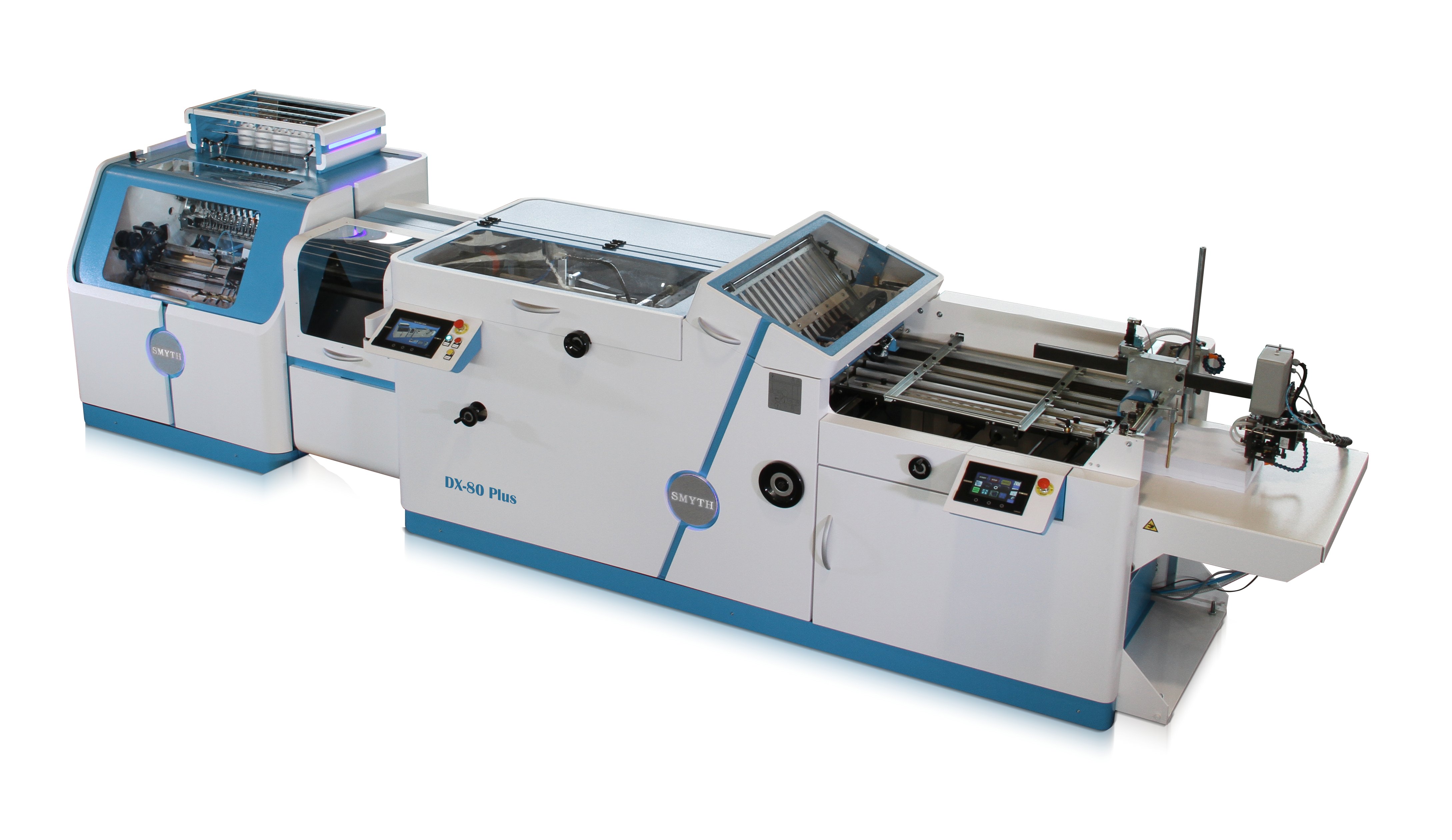

Smyth DX-80 Plus Automatic Feeding Folding and Sewing System – Top of the Range Solution

The Smyth DX-80 PLUS produces digitally-printed sewn books comprising 4-page or 8-page inserted signatures and is available in both a sheet-fed version and an in-line configuration with Canon digital printers.

  • Max B2 sheet size – Handles sheet sizes up to 500 x 700 mm.
  • Parallel buckle folder – 8-page inserted signatures production to optimise costs.
  • Plow folding – Optimal stable sheet folding quality during signature preparation.
  • New pulling out system – To handle landscape sizes efficiently.
  • Optimized printing – 8-page inserted signatures for a wider range of available printing formats.
  • Free-of-charge – Free, fast and expert remote technical support.

PAGE INSERTED SIGNATURE MODE

Sheet size:
Max. 420 x 640 mm
Min. 180 x 200 mm

Signature size:
Max. 420 (head to tail) x 320 (back to front) mm
Min. 180 (head to tail) x 100 (back to front) mm

8-PAGE INSERTED SIGNATURE MODE

Sheet size:
Max. 700 x 500 mm
Min. 300 x 200 mm

Signature size:
Max. 350 (head to tail) x 250 (back to front) mm
Min. 150 (head to tail) x 100 (back to front) mm

8-PAGE INSERTED SIGNATURE MODE- LANDSCAPE

Sheet size:
Max. 500 x 640 mm
Min. 300 x 200 mm

Signature size:
Max. 250 (head to tail) x 320 (back to front) mm
Min. 150 (head to tail) x 100 (back to front) mm

Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom


Feeding Speed 200 m/min
Number of Stitches 9
Length of Stitches 24mm
Paper Weight Min 50gsm Max 180gsm
