A PERFECT SYSTEM FOR FLEXIBLE PRODUCTION.
The CABS series binder provides intuitive operation, high-performance automation, high productivity, and high-quality control to meet your most demanding requirements.

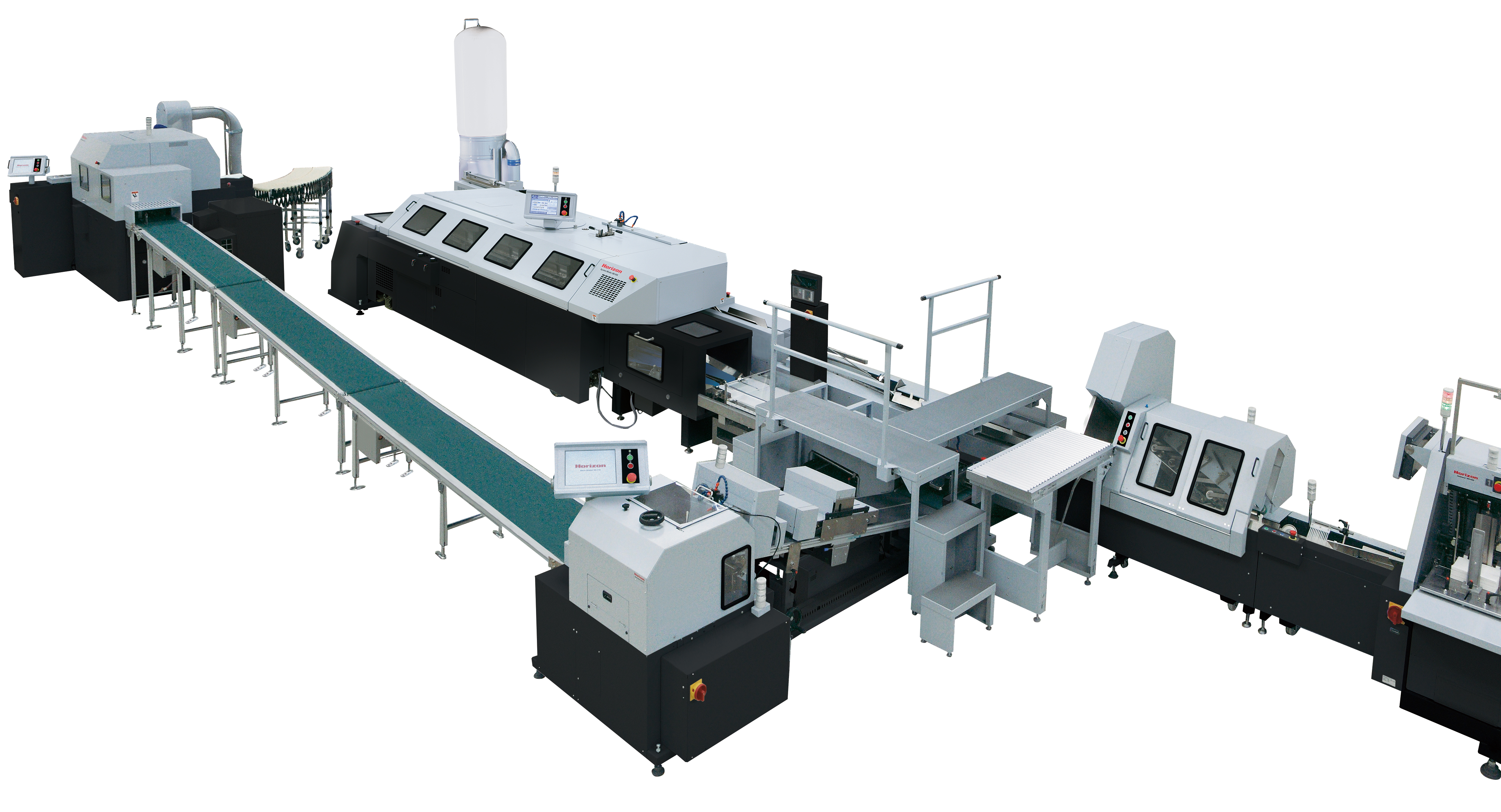

CABS4000V
The CABS4000V binder connects the MG-600 gatherer, the SB-09R/09RF system binder, and the HT-110 three-knife trimmer in-line, achieving high productivity at a maximum of 4,000 books per hour.

SB-09V/09VF 9-CLAMP SYSTEM BINDER
Highly accurate automated set-up is performed with simple and
easy operation.

• Book production of up to 4,000 books per hour can be achieved.
• Two application rollers ensure superior penetration of hotmelt glue.
• Both EVA hotmelt glue and PUR hotmelt glue can be used by using the interchangeable melt tanks. *An exclusive glue tank is necessary for each EVA hotmelt glue and PUR hotmelt glu

MG-600 SYSTEM GATHERER
High-performance system gatherer with superior operability.

• Up to 6 gathering units (36 hoppers) can be combined.
• The optional IC2-MG600 image checker detect sheets that have been improperly positioned or misprinted.
• The optional RU-600 reject unit automatically rejects the incorrectly collated signatures from the production line without
  stopping the running system for maximum productivity.
• Used stations and settings of the detecting sensor can be memorized.
• The optional ST-600 stacker unit allows gathering to be performed off -line from the binder.

HT-110 THREE-KNIFE TRIMMER
Achieves highly accurate setups with easy and simple operation.

• A trimming cycle can be adjusted in 13 stages from 400 to 1,600 cycles per hour. By accumulating 4 books at once at the
  stack stream unit, a productivity of 6,000 books per hour* can be achieved. *In the case of CABS6000
• Rigid framing and durable structure provide the utmost in trimming accuracy
