Flexible System Configuration for both Digital and Offset Print Environments

How can you efficiently produce high quality booklets from both digital and offset print?As digital printing has become a leading print process, meeting the finishing requirements for both digital and offset print is the key for success.

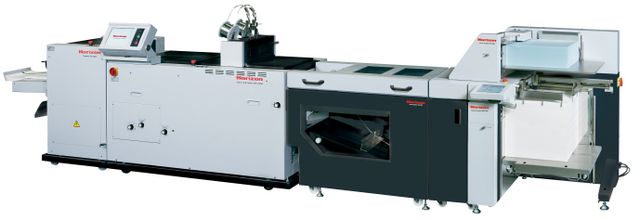

The Horizon HOF-400 high speed offline feeder provides flexible system configurations such as cover feeding, sheet insert on, variable page count, bleed trimming and creasing for digital printing. The HOF-400 finishing system can also be connected with the finishing devices for the offset outputs to process both digital and offset print, through one efficient system.

  • Finishing device for digital print – Digitally printed sheets are fed reliably and with care from the HOF- 400 to the saddle-stitching system. A standard mark sensor enables variable sheet count documents to be handled with integrity and verification.
  • Finishing device for offset print – a VAC series collator can be connected in line,for processing of conventional offset printed work.
  • High Speed – The HOF-400 can feed at a speed of 25,000 sheets per hour (A3 / 11” x 17”) and 35,000 sheets per hour (A4 SEF/ 8.5” x 11”). This high speed feeding is capable of handling the output of multiple printers.
  • User-friendly Operation – Feature rich newly designed 7″ color touch screen display for easy and intuitive operation.
  • Various modular options – The HOF-400 is compatible with a wide variety of system configurations such as sheet feeding, cover feeding, accumulating, bleed trimming and center creasing depending on your needs.

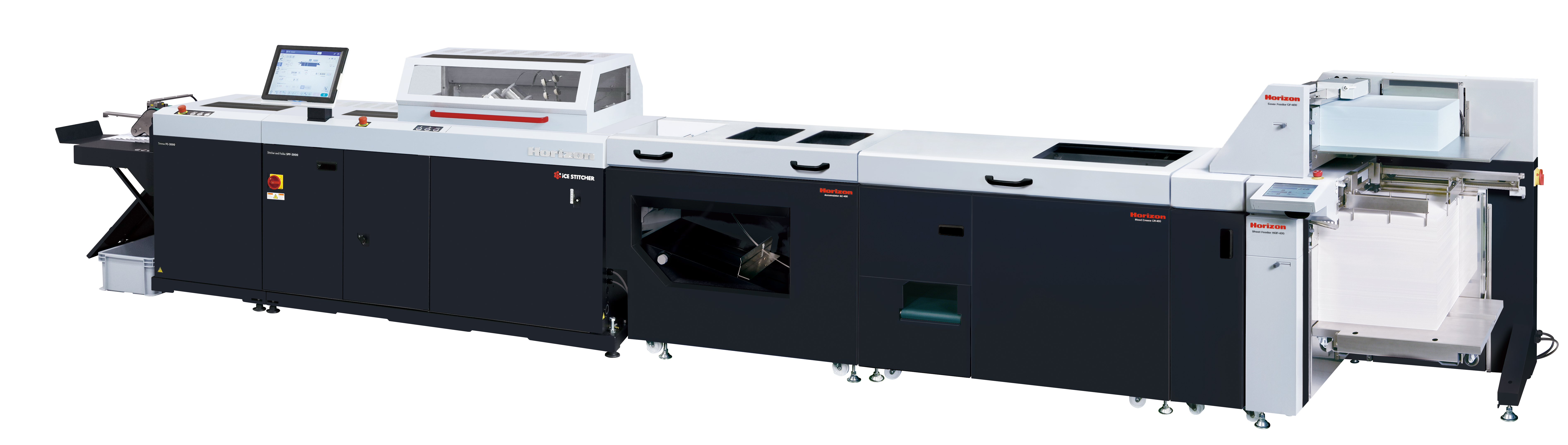

  • Flexible booklet making system selection – The HOF-400 can be connected to the SPF-200A, SPF-200L, StitchLiner 5500 StitchLiner MKIII
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom

Sheet Size (W x L) Max. 356 x 610 mm / 14.0” x 24.0” - Min. 203 x 203 mm / 8.0” x 8.0”
Production Speed (Sheets) Max. 25,000 per hour (A3), 35,000 per hour (A4 SEF), 45,000 per hour (A4 LEF) - (When the sheets are processed one by one)
Production Speed (Booklets) 4,000 per hour (Without Creasing, 16-page, A4 size booklet), 3,200 per hour (With Creasing, 16-page, A4 size booklet), 5,000 per hour (Without Creasing, 16-page, A5 size booklet), 4,000 per hour (With Creasing, 16-page, A5 size booklet) - (The production speed is limited depending on the stitcher)
Sheet Pile Height on Feed Tray Max. 620 mm / 24.4"
