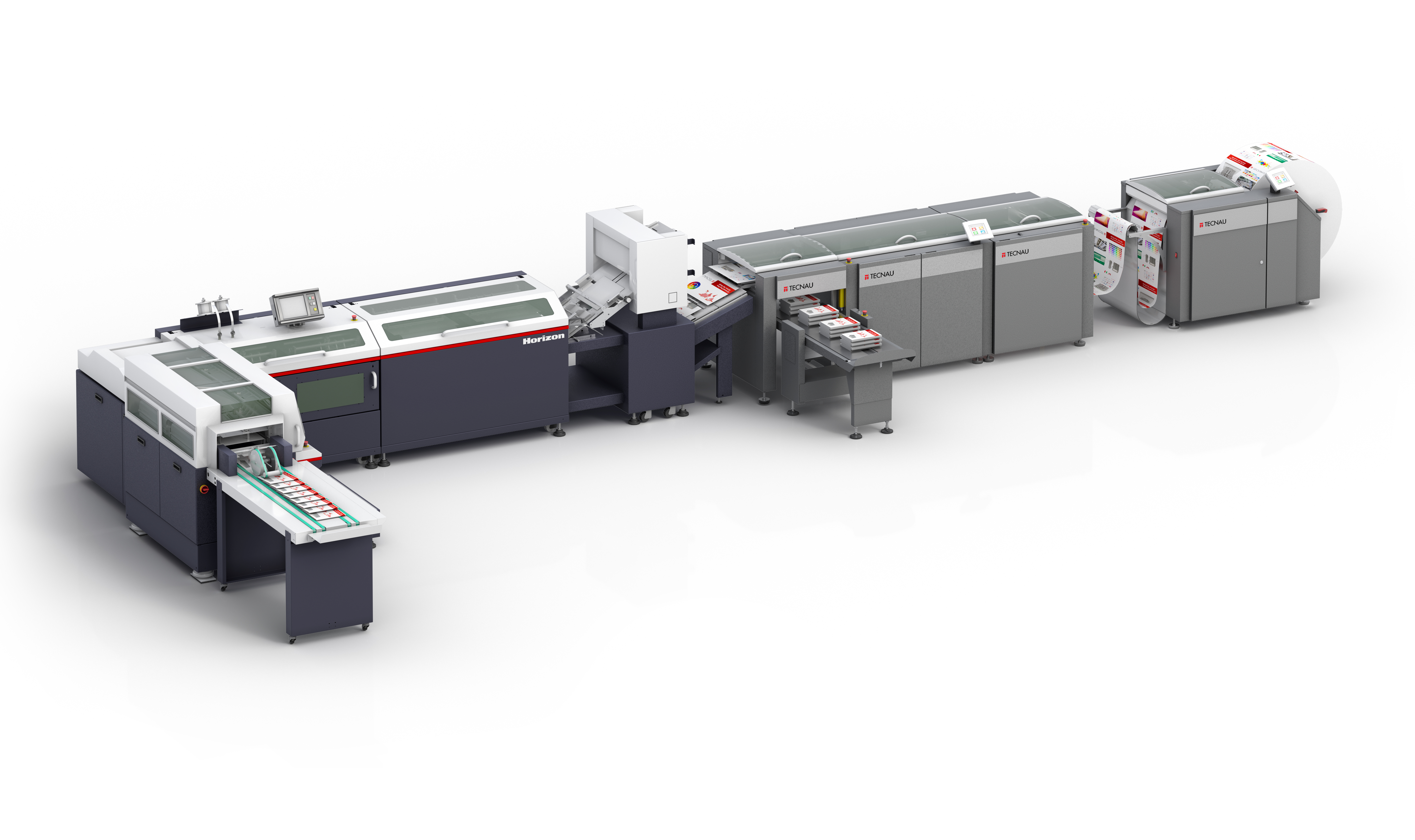

Next generation StitchLiner: high speed saddle-stitcher brings the highest quality booklets inline with continuous feed printers
HIGH QUALITY –Newly designed saddle-stitching system achieves high quality booklet production at a high speed. The sheets are tightly folded along the accurate scoring lines made one by one for consistent quality production without any special skill.
HIGH PRODUCTIVITY – Newly developed sheet transport system enables smooth and stable transportation of thin sheets at a high speed. The system can produce 6,000 booklets per hour at maximum.
VARIABLE DATA HANDLING –Variable page count applications can be handled without any operator intervention. The in-line configuration insures sheet-to-sheet integrity.
FLEXIBLE INSERTION – The optional cover feeder CF-50D enables flexible insertion of up to 3 sheets in the booklet. The top-feed mechanism enables smooth sheet insertion of a wide variety of sheets.

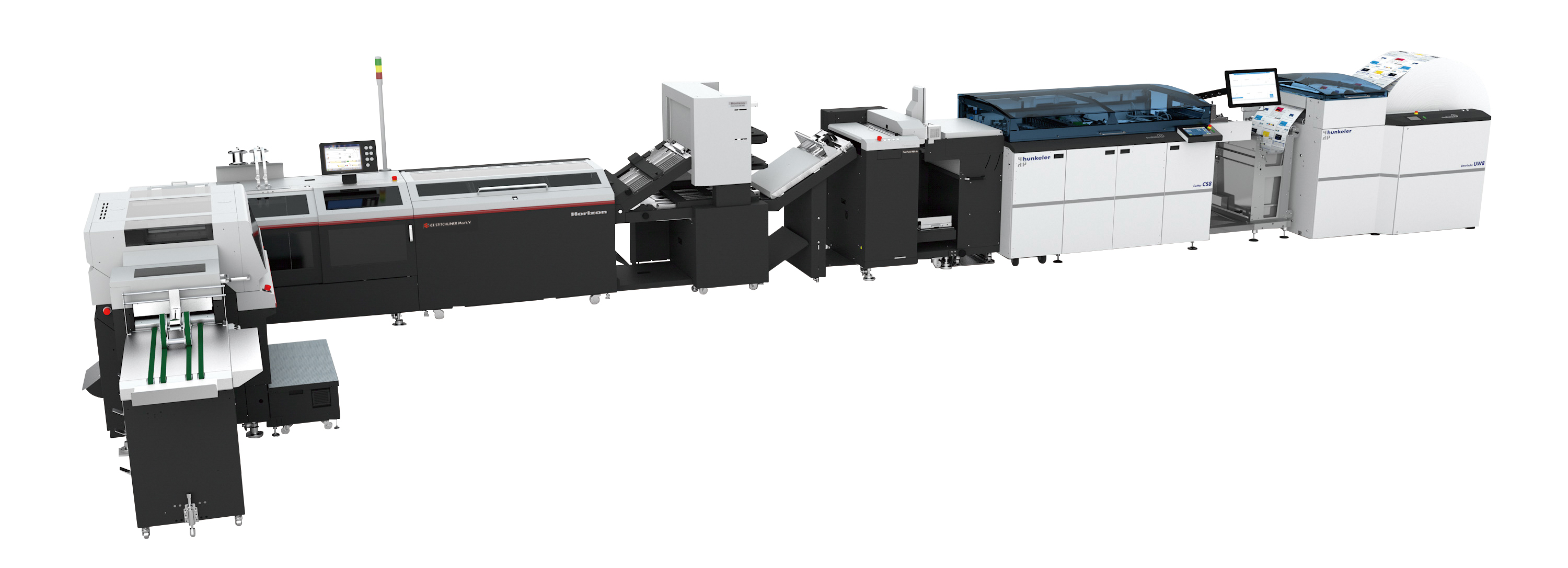

iCE StitchLiner Mark V can be connected to the iCE LiNK cloud based workflow management system in order to manage multiple finishing devices
Book a demo in our Hemel Hempstead Showroom
Sheet Size | Portrait Max. 508 x 356 mm or 20.000” x 14.015” Landscape Max. 610 x 267 mm or 24.015” x 10.510” Min. 194 x 140 mm or 7.640” x 5.515” |
Sheet Size: | Portrait Max. 508 x 356 mm Landscape Max. 610 x 267 mm Min. 194 x 140 mm |
Booklet Size: | Untrimmed Booklet Size Portrait: Max. 356 x 254 mm Landscape: Max. 267 x 305 mm Min. 140 x 97 mm Finished Booklet Size Portrait: Max. 352 x 252 mm Landscape: Max. 263 x 303 mm Min. 120 (*2) x 85 mm *Max. 352 mm x 303 mm can be finished depending on substrate weight and condition. |
Sheet Weight Range: | Roll Paper Normal Paper: 52.3 to 209 gsm Coated Paper: 73.3 to 209 gsm Allowable Curl: +/- 8 mm or +/-0.31” Cover Sheet Normal Paper: 52.3 to 350 gsm Coated Paper: 73.3 to 350 gsm *These may be limited depending on the sheet size, sheet weight range and grain direction of the sheet. |
