High Quality in a Compact Body!

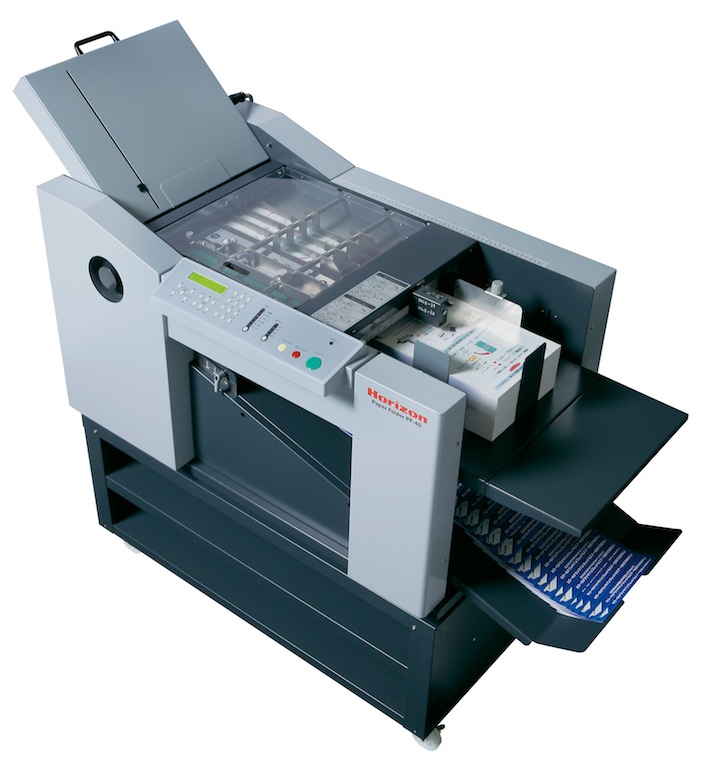

The PF-40L combines high-volume suction feed capabilities with the intelligent automation that Horizon products are so well known for. The 1,000 sheet capacity top-fed system is the same suction feed system as is used on both the highly popular VAC Collators and PF-P330 Folder providing for reliable mark-free feeding from static laden digitally printed sheets as well as conventional prints. The PF-40L’s push-button control panel enables any user to set-up for the six most popular fold patterns of standard cut-sheet sizes. The paper size range for the PF-40L is from 125mm x 128mm and thicknesses from 52gsm to 157gsm cover without requiring pre-scoring or creasing. Memory capacity allows for easy programming of ten unique fold patterns and/or non-standard sheet sizes to be recalled at any time.

  • High performance suction rotor feeding and accurate sheet registration leads to high quality folding.
  • Quick and Easy Setup
  • Simply select sheet size and fold pattern and each section sets-up automatically
  • Equipped with 2 buckles to meet a variety of folds. Fine-tune adjustment can be done at 0.1mm for accurate folding
  • High Performance Suction Rotor Feeding
  • Uniquely designed suction rotor feeding is employed to meet high speed production up to 23,400 sheets per hour
  • Wide range of paper stock can be fed with ease
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom


Max Sheet Size 320 (W) x 470 (L) mm
Min Sheet Size 125 (W) x 128 (L) mm
Max Pile Height 105 mm
