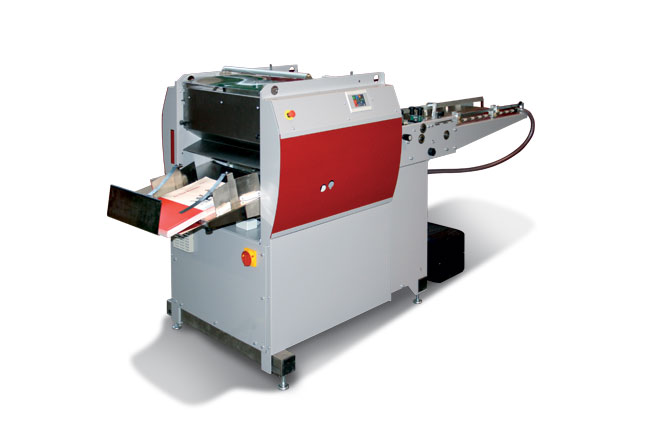

The Mini BAT Plus is a compact machine to produce die-creases in programmed positions, with quality, accuracy and speed. The Mini Bat Plus is the original true creasing machine and utilizes the rule and matrix method of creasing. This system has been traditionally used in die cutting machines, and is the only recognized method for creasing digitally printed stocks or for creasing cross grain. This machine is robust in construction and is ideally suited for commercial applications. Compared to any other machine of this type, the Mini Bat 2 allows the highest creasing pressures and performances in speed and accuracy.
It is possible to install the ROBOPERF device, a precious tool that carries out adjustable perforations in any direction, and INK-JET systems for numbering operations and personalized printings.
Book a demo in our Hemel Hempstead Showroom
Max Size | cm 45 x 90 (17 3/4 x 35 1/2 in.) |
Min Size | cm 15 x 20 (6 x 7 3/4 in.) |
Stock Range | min. 80 – max. 600 gr. (4-30 points) |
Speed A4 1 creasing-folding | 11,000 cp/h |
