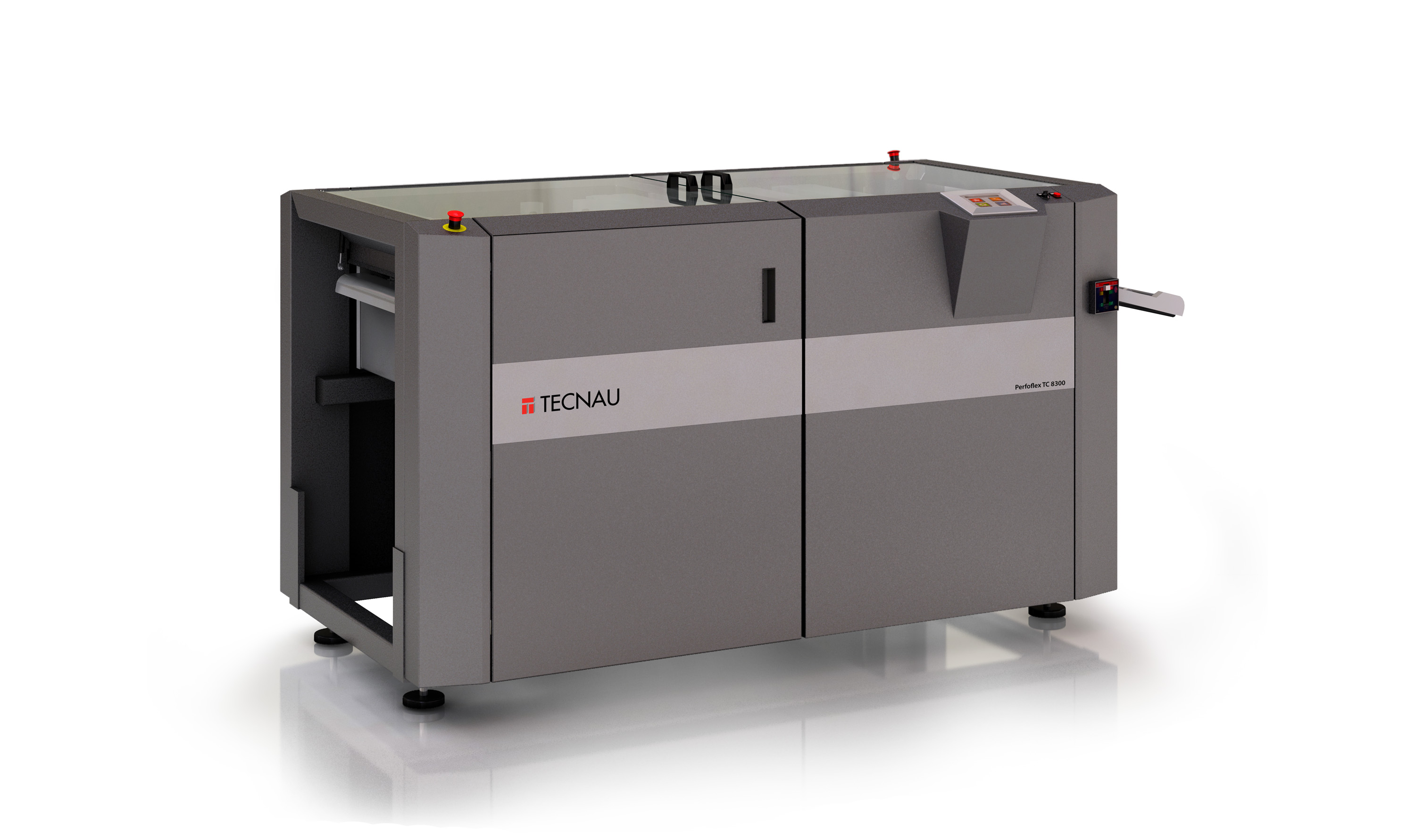

The new Perfoflex generation has been developed to operate in line with the newest and fastest digital printers up to 240 mt/min (800 fpm).

Two series of dynamic perforators are offered: the TC 8200 series for 22” web width and the wide format TC 8300 series for 30.5” web width. The TC 8000 series is based on an innovative perforation technology allowing improved perforation performances and minimum cross perforation distance. TC 8000 offer optional motorised vertical perforation wheels to automatically change the horizontal positions of the vertical perforations across the web, without stopping the web.

  • Static motorized vertical perforation wheels
  • Graphical tool for job parameters input by PC
  • From 2 to 6 independent -perforation devices
  • 22″ or 30,5″ web width solution
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom

Max Speed 800 ft/min
Feeding Pinfed or pinless
Paper Weight 60 - 250 gsm
Web Width 22" or 30.5" 560 mm or 775 mm
Form Length 4" - 24" 102 mm - 610 mm
Perforation Distance Min 4" at 240 m/min (with the same blade)
