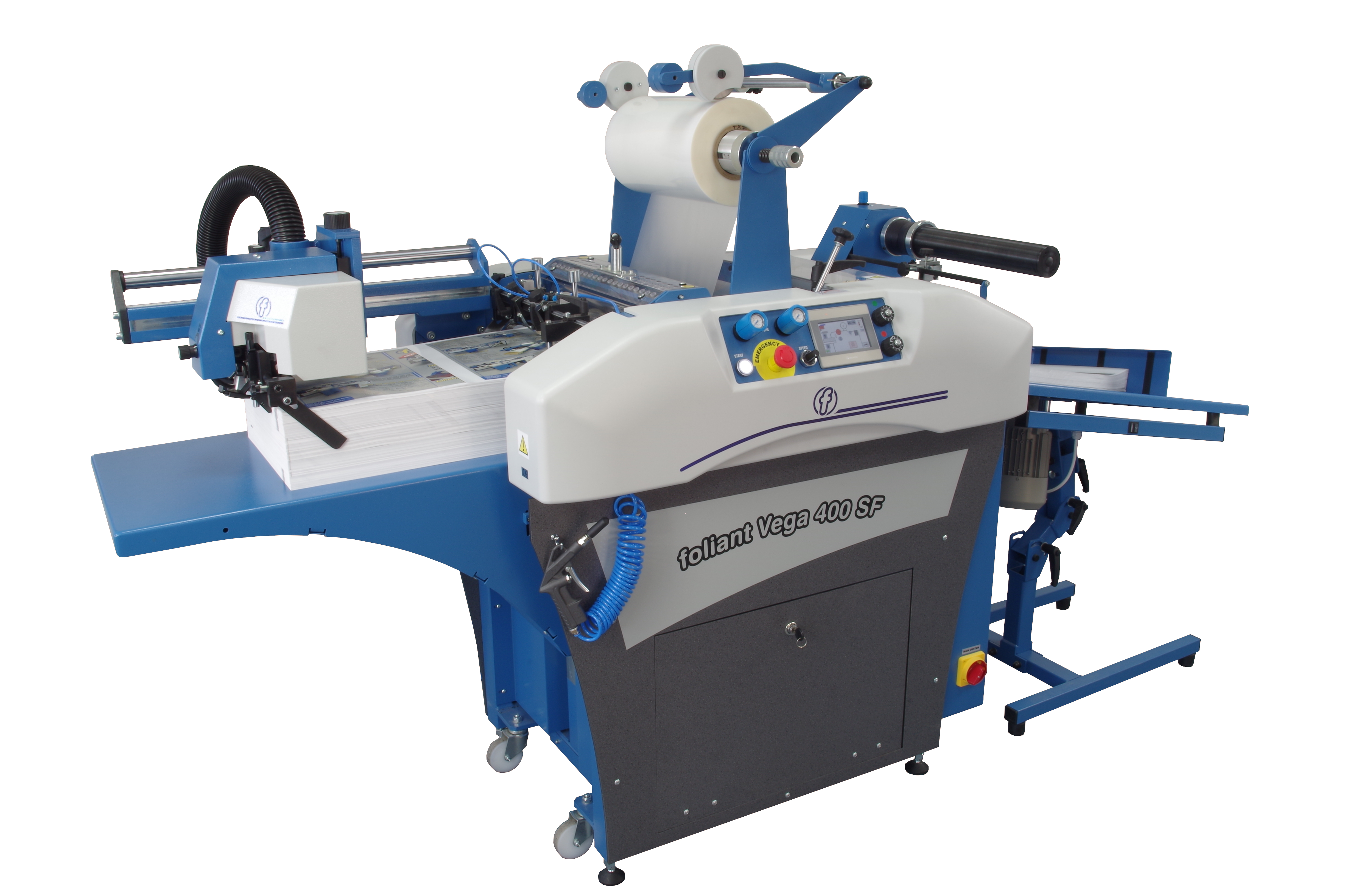

The Foliant Vega 400SF (B3+) is a new generation of very compact industrial laminating machine, designed for heavy duty lamination of digital and offset outputs (max format 38x66cm). It is equipped with an integrated deep pile suction feeder, pneumatic high speed bump separator, adjustable dual decurl car and overlap system. Due to its high pneumatic pressure system, format and performance, the machine is suitable for all jobs – all kinds of digital printed sheets, lamination and high volumes of offset printed sheet size B3+ lamination too. Maximum speed is up to 20m/min, while performance is over 2300 sheets p/h of B3 portrait.
The Vega 400SF is equipped with a rising pile suction feeder. The Becker vacuum pump is integrated in the machine frame and used for sheets front airing. The overlaps are controlled in an “in run” mode and the accuracy is +/- 2mm under-lap (in constant speed). The feeder is fitted with a lifting plate and has a capacity of 28cm .
Foiling is possible with the retrofittable Multi-functional Imprinting Unit. It provides a cost effective way to easily transform output from the Vega, Mercury and Taurus B3 and B2 laminators. It makes foiling and spot varnish fast and affordable for short run and personalised print by applying foil or varnish to a pre-printed black toner. The sheet can then be reprinted mono or four colour. It runs a wide range of colours including gold, silver, red and green and a clear gloss for spot varnish. Foil can be added to un-laminated paper, or, for a more luxury feel and look, it can be added to laminate film such as ‘Soft Touch’ or ‘Anti Scuff Matt’.
Book a demo in our Hemel Hempstead Showroom
|Max Speed||20 m/min|
|Max Performance||2300 p/h (B3)|
|Warm up Time||8 min|
