A PERFECT SYSTEM FOR FLEXIBLE PRODUCTION.
The CABS series binder provides intuitive operation, high-performance automation, high productivity, and high-quality control to meet your most demanding requirements.

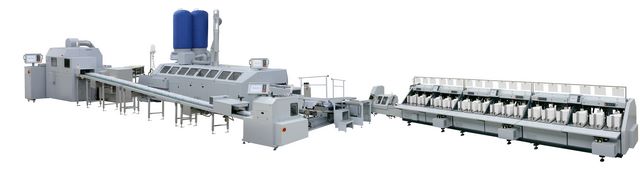

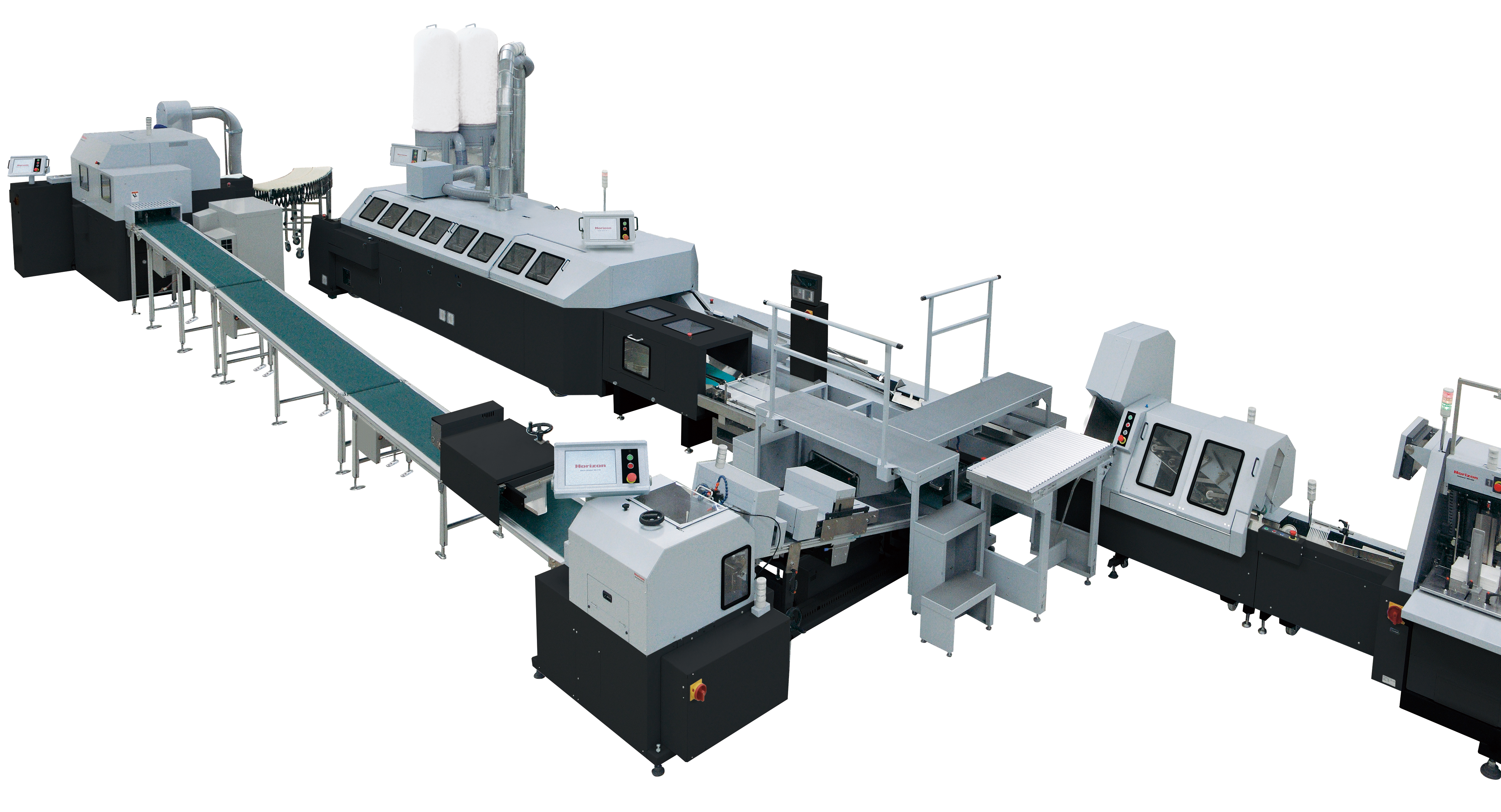

The CABS6000 binder connects the MG-600 gatherer, the SB-17/17F system binder, and the HT-110 three-knife trimmer in-line, achieving high productivity at a maximum of 6,000 books per hour

SB-17/17F 17-CLAMP SYSTEM BINDER
System binder that achieves fast and stable book production.

• Book production of up to 6,000 books per hour can be achieved.
• Both EVA hotmelt glue and PUR hotmelt glue can be used by using the interchangeable melt tanks. *An exclusive glue tank is necessary for each EVA homelt glue and PUR hotmelt glue.
• EVA glue tank provides exceptional glue application, even at high speed, thanks to three application rollers and one
  scraper roller on the tank.
• Two milling stations provide a versatile range of spine milling preparations

MG-600 SYSTEM GATHERER
High-performance system gatherer with superior operability.

• Up to 6 gathering units (36 hoppers) can be combined.
• The optional IC2-MG600 image checker detect sheets that have been improperly positioned or misprinted.
• The optional RU-600 reject unit automatically rejects the incorrectly collated signatures from the production line without
  stopping the running system for maximum productivity.
• Used stations and settings of the detecting sensor can be memorized.
• The optional ST-600 stacker unit allows gathering to be performed off -line from the binde

HT-110 THREE-KNIFE TRIMMER
Achieves highly accurate setups with easy and simple operation.

• A trimming cycle can be adjusted in 13 stages from 400 to 1,600 cycles per hour. By accumulating 4 books at once at the stack stream unit, a productivity of 6,000 books per hour* can be achieved. *In the case of CABS6000
