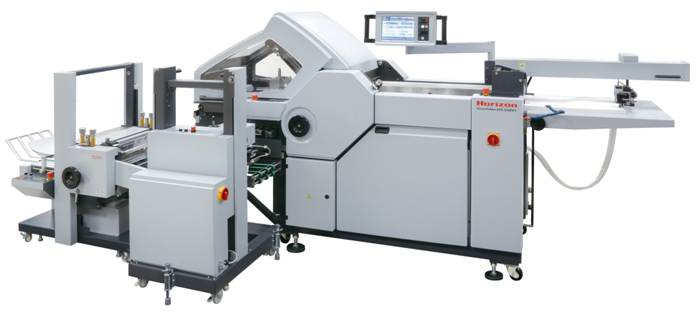

Mobile knife unit for various applications such as 16 or 32 page signatures, and refold of booklets for mailing. It is Compact, user friendly and features start, stop, inching and speed adjustments which are performed with simple operation.

  • Versatile sheet size range – The MKU-38 can be connected with various folders as an additional knife unit, A wide range of applications are covered with a sheet size of 90 mm / 3.54″ to 380 mm / 14.96″.
  • Featuring a rotating knife unit – Knife rotating feature enables folding up or down with quick and simple change-over.
  • Re-fold for saddle-stitching – The MKU-38 can be connected to a booklet-making system to fold stitched or non-stitched booklets for mailing applications. *connection is supported with StitchLiner and SPF-200 series bookletmakers.
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom

Max Folding Thickness Up to 2.3 mm / 0.09” thickness of folded sheet
Belt Speed 30 to 180 m/min / 99 to 590 ft/min
Sheet Size Max. 380 x 280 mm / 14.9” x 11.0” - Min. 90 x 20 mm / 3.6” x 0.8”
