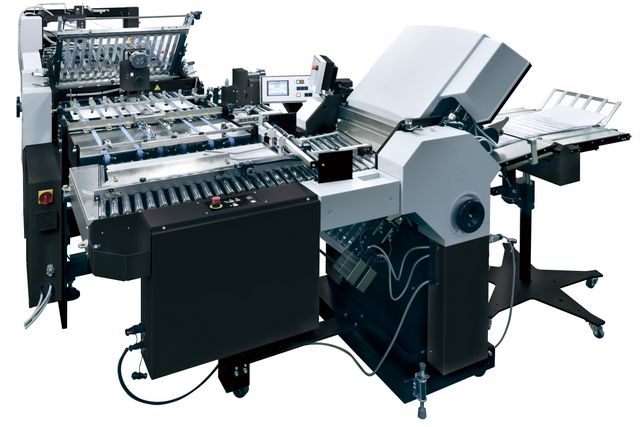

The T-564A/566A supports various folders. The height of the T-564A/566A can be adjusted to the preceding folder by the optional attachment (factory option). Buckle plates are set up automatically from the touch screen. All operations can be done from central operation console. An additional operation panel is available for added efficiency. Transport conveyor can be set for straight or right angle configuration depending on folding patterns. Superior sheet aligning capability ensures consistent and accurate folding. Specially-coated buckle plates minimize the effect from static for consistent folding quality. All buckle plates can set up automatically depending on folding patterns.

  • Additional folding station – Complicated fold patterns such as map folds or face up and face down 16 page signature folding can be achieved with this additional buckle station.
  • Interactive touch screen operation – Stand alone color touch screen enables set up of the folding buckle plates instantly with simple and intuitive operation.
  • Flexible configuration – Different infeed height options are available to match a variety of folding systems and configurations. (Custom height modules are a factory option and can not be retrofit in the field.)
Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom

Belt Speed 30 to 240 m / min, 98 to 787 ft / min
Buckle Fold Length 1st / 2nd / 3rd / 4th Buckle Chute: 50 to 360 mm / 1.97” to 14.17” 5th Buckle: 50 to 360 mm / 1.97” to 14.17” (T-566A only) 6th Buckle: 50 to 330 mm / 1.97” to 12.99” (T-566A only)
Sheet Size (W x L) Max. 558 x 558 mm / 21.96” x 21.96” (Delivered sheet size from the upstream device) Min. 50 x 128 mm / 1.97” x 5.04” (Delivered sheet size from the upstream device)
Sheet Weight Range Normal Paper 35 to 209 gsm Art/Coated Paper 50 to 232 gsm
