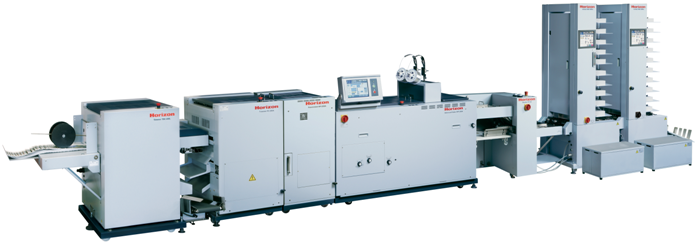

The Horizon TBC-200L is an additional top and bottom trimmer to eliminate additional cutting process and can be connected with the SPF200/FC200 series bookletmaking system.  A stand alone model is also available to connect to your existing bookletmaker.

The set up and operation can be controlled from the SPF-200 series touchscreen.  An individual touch screen is equipped on the stand alone model.

The TBC-200L has A4 landscape capability for up to 305mm/12″ spine-to-face can be finished for A4 landscape booklet production.

  • Easy access to the knife section for setup and maintenance.  Operator safety is ensured with the interlocked cover
  • Booklets are firmly transported and jogged with a uniquely designed system that ensures accurate trim quality
  • The whole transport section can be opened for easy booklet access and handling
  • Trim from face and top-bottom can be gathered at the same place for space saving and efficient trim removal
  • Optional TB-30 waste extraction for both trimmers giving continuous production

Specification

Production Speed: Max. 4000 booklets per hour

Trim Width: Max 25.4mm / Min 2mm

Trim Thickness: Max 5mm



Request Brochure

Request a Demonstration

Book a demo in our Hemel Hempstead Showroom


Production Speed Max. 4,000 booklets per hour
Trim Thickness Max. 5 mm / 0.195"
Trim Width Max. 25.4 mm / 1" Min. 2 mm / 0.08"
Finished Booklet Size (W x L) Max. 352 x 305 mm / 13.84" x 12" Maximum 356 mm / 14" width can only be transported. Min. 120 x 8 5 mm / 4.725" x 3.35"
Untrimmed Booklet Size Max. 356 x 305* mm / 14” x 12” (*When connecting with SPF-200L) Min. 120 x 85 mm / 4.725” x 3.347”
