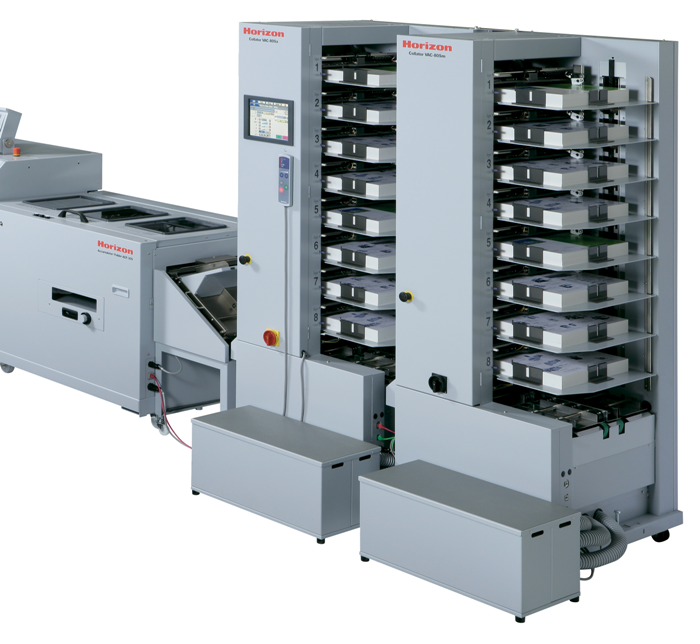

The VAC-80S is equipped with a sheet alignment mode to reduce jams in the ACF-30S and down time for uninterrupted operation. Advanced programming functions are available such as Double Cycle for non-stop operation and Block Feed for accurate bookletmaking. The optional image checking system (CCD-VAC80S) is available for higher quality control. The VAC-80S is expandable up to 6 towers, 48 feed bins.
The 80S uniquely feeds sheets up to B3 on the long edge so the sheet is not turned in the production train, allowing greater stability and increased operating speeds. Also fully-automated and JDF-ready the SL6000’s instant makereadies, fast production speed and superior performance on lighter stocks makes it a must for the highly popular short-run magazine, catalogue and brochure marketplace.
Book a demo in our Hemel Hempstead Showroom
Sheet Size | Max. 350(W) x 500(L) mm (13.77” x 19.68”) - Min. 140(W) x 199(L) mm (5.52” x 7.84”) |
Bin Pile Height | Max. 80 mm (3.2”) |
